| 一、典型應用 Typicala pplications | |||||||||
| 1、遂道系統專用 2、建筑照明、路燈、高層堅井線連接 3、高層建筑堅井電纜戶外架空線、電纜溝工廠動力供電主纜 1. Streetlight system 2. Architectural lighting, streetlight and high-rise shaft line connection 3. High-rise shaft cable, outdoor overhead line, troughing, main cable for factory power supply | |||||||||
|

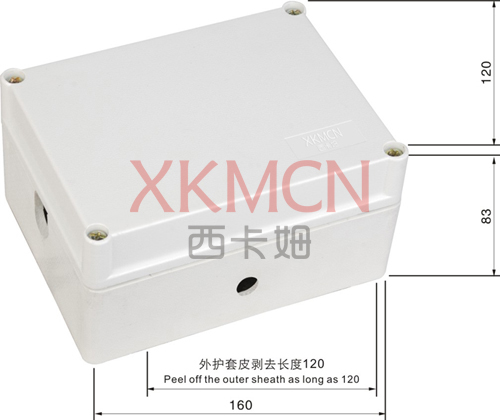

① 首先剝去電纜外護套皮 First, peel off the outer sheath of cable | |||||||||
 |

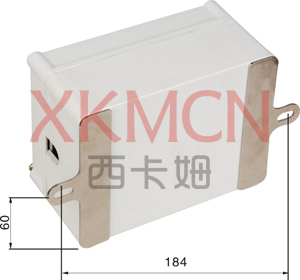

訂貨號Order no .110733 | ||||||||

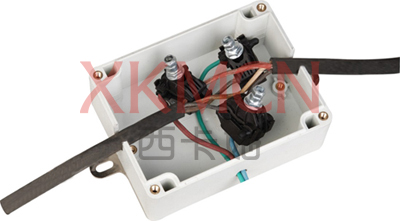

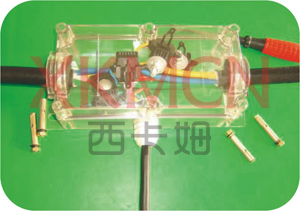

| ② 不需剝去的電纜的絕緣皮，接頭完全絕緣；不需截斷主電纜，可在電纜任意位置做分支。 It is unnecessary to peel off the insulating sheath of cable, the joint is fully insulated; it is unnecessary to cut off the main cable, we can make branch at any position of cable. ③ 按照下列步驟安裝絕緣穿刺線夾 Install the insulation piercing connector according to the following procedures | |||||||||
| |||||||||

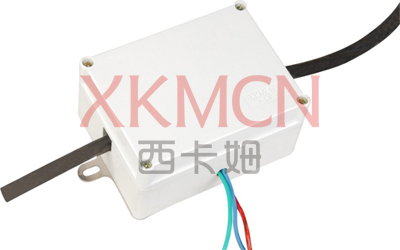

| ④ 安裝后的遂道分支防水接線盒在分支中呈等距離狀分布。 Tunnel branching waterproof junction box after installation presents equidistance distribution among the branches. | |||||
|
|

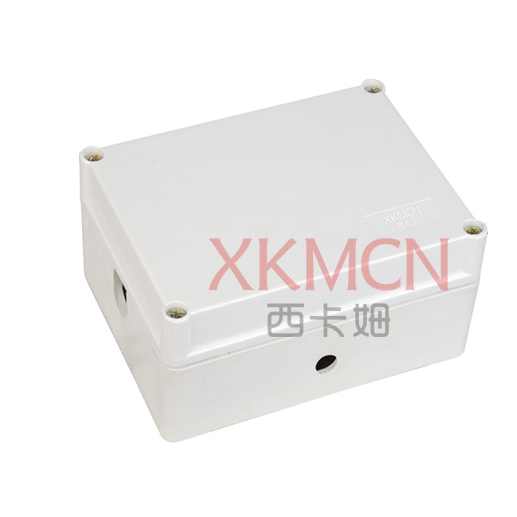

訂貨號Order no .110734 | ||||
 |
訂貨號Order no .110735 | ||||
| 二、安裝方法 Installation methods | |||||
|

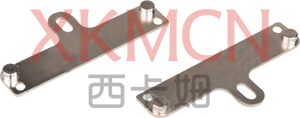

遂道(dao)分支防水接(jie)線盒(he)均使用(yong)膨脹螺(luo)栓(shuan)固(gu)定于(yu)隧道(dao)壁(bi)(bi)上，在隧道(dao)側(ce)壁(bi)(bi)的水平位(wei)置上，孔(kong)深(shen)40mm，將 M6 膨脹螺(luo)栓(shuan)塞入孔(kong)中(zhong)，套上穿(chuan)剌線夾盒(he)安裝支架，然后將M6螺(luo)母擰緊。 Tunnel branching waterproof junction box is fixed on the tunnel wall in horizontal position with expansion bolts, hole depth is 40mm, set expansion bolts of M6 into the hole, install the supporting rack of piercing connector box, then tighten the M6 nuts. | |||||
| |||||
| 三、適用說明 Application description | ||||||||||||
|
